Propane Burners.

Propane Burners.



These have been long awaited and these are manufactured by Moderustic for Aquatic Glassel.

These are our new propane burners for fire pits with use with PROPANE. These are our FPPK models (fire pit propane kit)

They are as follows:

18" pan with a 12" burner

24" pan with a 18" burner

30" pan with a 24" burner

We can build any size, shape, material you can design or dream of. We are the only company in the world offering custom tailor made propane burners fit to your needs and or designs.

Burners don't come with the copper pan.unless specified.

The remote box has an electronic (battery) starter and a variable fuel valve. Propane must be mixed with air (air mixer valve/ venturi) to insure a clean bur without soot! If you burn straight propane you will experience black smoke/ soot and this is not good. We have worked on the development for several months now on these burners and they are now ready for you.

The picture on the lower left is of a possibility for the new burners. You can mount these into any table. With this in mind when we designed these we wanted the customer to be able to build or design any base, table or fire pit to install a propane burner.

The picture on the right is of the bottom side of the control box.

fp 1fp 2

The left picture is of the control box with the air mixer. The picture on the right is of the ring and base plate which prevents the propane from sinking.

fp 3fp 4

Below on the right are the thermo-coupler and electronic starter. The thermocouple is the safety switch which if the fire is blown out and leaving the thermocouple cold will shut your system off for safety reasons.

fp 5fp 6

Here are the first of our propane pan burner pictures and more details will follow. These have been replaced with a better and improved newer style burner. We will post in the next week or so the new pictures and details.

propane pan 1propane pan 2

We will be posting on the new generation of propane pan burners.

These burners cone in 18", 24" and 30". When ordering please specify if the connector is on the left or right side.

with remote (optional) The pictures of the remote control will follow in the days to follow.



Our propane Fire Pit burners come in 2 sizes, 12", 18" and 24".

propane pan

The new propane burner shown is a 12" with an 18" base and these will be out in a few weeks.

This is a 24" ring on a 30" base. The base is detached for remote locating.

propane ring

We are taking order for the burners as they are being built as ordered. Manufacturing time is about ten days and they ship the same day as of completed.

The pan burner below is for a 2 sided fireplace and this pan is 25" x 45" and controlled from only one side. It is constructed from 16 gauge brushed stainless steel with 3" x 3" x 3" corner legs.

laura 1laura 2

laura 3laura 4

The picture on the bottom left shows you the thermocouple and safety pilot light kit which are UL and CSA approved.

laura 5laura 6

laura 7laura 8

This is one side of the two sided fireplace and we will post pictures when the glass is installed of both sides.

laura 9laura 10

he fire pit below has a 1/4" Clear, 1/2" Clear Base with Red Orange Topping, Emerald Green Topping and Light Sky Blue Topping. The was a basic wood burning fire pit purchased locally and converted with our fire pit propane kit (FPPK)

The fire table below has a propane burner and is not configured correctly. That is why you will see soot (carbon monoxide) the black stuff on the glass. If you purchased a table from one of these clowns that have you connect a propane tank to a burner ring, you will have problems. We use all the proper safety valves and air mixers to insure a clean and safe burn. See our propane page. We are the only company manufacturing a propane burner that is safe and built correctly for these fire tables when you are using our glass. The glass used was Starfire and Pale Blue Topper. Since and after the install we did supply the correct burner and it is burning clean as it should be.
As you can see after burning for about 10 minutes the soot is and will be an issue. Carbon monoxide IS NOT GOOD FOR YOU!
Below is a 36" aluminum pan burner for propane with a 3" outside lip. These can be made to fit any fire pit, fire table of fire fit for natural gas or propane. We can build anything! This pan has a thermo-coupler for safety and air mixer built in to eliminate soot.
fire pit 4fire pit 3
fire pit 2fire pit 1
The fireplace below has Bronze, Bronze Reflective, Ice, Gold and Yellow Amber Topper. This fireplace is in Shawano, Wisconsin at the Cotton Patch Restaurant. E mail Patti and tell here you saw her fireplace.
patti 2patti 1
patti 3
Now for the after pictures! This was a custom propane burner which was under all of the glass!
patti 5patti 4
This is what Patti had to say:
Hi Ed,

Well, it's been about two weeks since I installed the new fireplace, and it is the talk of this sleepy little town. Because of the "Ice" on the top, it has been nicknamed the "Fire and Ice" fireplace. I just placed an order for a pound each of 1/4" Gold, Yellow Amber Topper and Clear Ice. I think it needs a smidgen more color, and since the Ice is the big feature, I decided to add a little more. I have to say, I didn't think I would like the ice, but it looks amazing!

Thank you Ed and Jimmy for all of your help and hand holding over the past few months. I will take more pictures when I add the new products.

Thanks again,

Patti

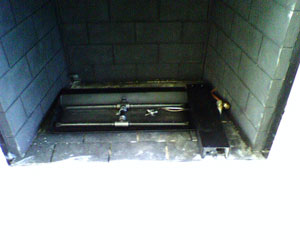

pan 2pan 1
The fireplace below is a propane burner, self installation with the 2" method, Starfire and Gold on top

jr 1jr 3

Above we have the old burner with a smaller flame pattern which we will change to a double burner in our tray propane pan burner

jr 5jr 4

A little bit of cleaning with a wire brush and 1200 degree paint

jr 6jr 7

We filled the bottom with pea gravel and the covered it with sand

jr 8jr 9

Then we installed the propane burner and filler it with pea gravel to the top of the burners

jr 10jr 11

You can see the pilot light and thermo-coupler exposed

jr 12jr 13

So there it is. A clean burning propane burner, 2" method, no soot, no smells, no carbon monoxide and it puts out a tremendous amount of heat. We sell the 2" method because it works and if anyone tries to tell you different, they need your money more than you do. We are the only company building propane burners for glass that don't soot or smell!

These are our round ring burners with out the center hub and these can be made in any size in steel or stainless steel

10 inch 110 inch 2

10 inch 3

The pan below is a brushed aluminum pan with sculpted legs. This pan is for propane and now we offer a simple adapter to convert this to remote control from the back side (battery operated). The glass installed is a multi mix for the photo shoot only. The pan is 2" with 3" legs. This pan will be installed in Cabo San Lucas, Mexico

alum 1alum 2

alum 3alum 4

alum 5alum 6

alum 7alum 8

alum 9alum 10

alum 11alum 12

alum 13alum 14

The fire pit below shows our FPPK (fire pit propane kit) a 30" base with a double 24" stainless steel burner. You will notice the igniter and thermo coupler (heat switch for safety). The base plate is to prevent propane from leaking into the fire pit below.

bm 1bm 2

bm 3

The propane conversion was here in Southern California. Crista brought the bowl and we did the rest.

crista 5crista 6

Crista brought the top pan and lid and we installed a propane burner We installed one of our FPPK kits (fire pit propane kit)

crista 2crista 3

crista 1cb 7

This is the table Crista built to hold the copper pan/ bowl

cb 1cb 2

The ventless burner below is 1 of 3 that were sent to Georgia. The glass that we tested was Multi Mix. We show the burner finished, with the burners exposed, burning and with glass, We will post the pictures of the finished fireplace when the customer send them to us to post. This is a propane ventless burner and these also are made in natural gas as well.
tj 11tj 10
tj 9
Notice the stainless box tray underneath the upper pan.
tj 1tj 2
tj 3tj 4
tj 5tj 6
tj 7tj 8
tj 13tj 14
tj 15tj 16
tj 17
tj 12
If you dream it, design it, think of it, we can build it as we are the innovators in the industry which seem to some how give licence for most to try to copy us and our products and designs. What is important that you know who we are!
The vent less burner below is made of steel and there were actually 4 of these made. We covered the front and sides with 5" skirts. There are being installed in Georgia and as soon as they send pictures we will post them These pictures were taken just after the testing. This is a propane vent less burner and these are available in natural gas as well.
vent less 1vent less 2
vent less 3vent less 4
vent less 5vent less 6
vent less 7
The pictures below are of the same burner as above with Azurlite installed. These 4 ventless burners are being installed in Georgia.
v 5v 7
v 8v 9
v 10v 11
v 12v 6
v 13
The skirts will hide the the valves and the remote control will be moved to the side of the fireplace. This was a vent less burner the customer sent to us for conversion and they asked for us to add a remote to all 4 vent less burners.
The fire pit/ table is at the Roxbury Hotel and we will show you the progress here from beginning to end. This was a propane installation with our FPPK burner. The colors used were:
1/4" Starfire, 1/2" Starfire, Gold, Lime Green Topper, Pale Olive Green Topper, Olive Green Topper,a little bit of wood and tile and here you go!
roxbury 4roxbury 5
Above shows the framing and the gas line coming in.
Below shows the pipe coming out of the floor and the thermo-coupler on the glass next to the igniter
roxbury 6roxbury 8
roxbury 7
roxbury 7a
roxbury 2roxbury 1
roxbury 3
Roxbury Hotel, a cool fire pit!

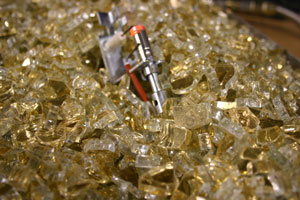

The propane vent less burner below shows where the sensor has to be and how it works. This is a stainless steel pan with Gold glass for the test burn.
vent less 1vent less 2
vent less 3vent less 4
vent less 5vent less 6
vent less 7vent less 8
vent less 9vent less 10
vent less 11vent less 12
vent less 13vent less 14
vent less 15vent less 16
vent less 17vent less 18
vent less 19vent less 20
vent less 21vent less 22
The 9 pictures below are of a steel propane ventless burner. We used the original burner and installed an air mixer under the pan to insure a clean burn. As you will see the thermo-coupler, pilot light and ODS (oxygen depletion sensor are intact). These pans can be made in any shape or material.
vp 1vp 2
vp 3vp 4
vp 5vp 6
vp 7vp 8
vp 9
What ever burner you purchase with or without remote control, we can convert it for you. Propane or natural gas, vented, direct vent or vent less as shown.

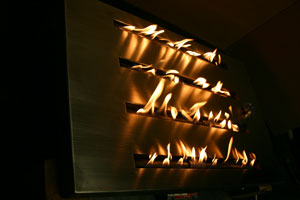

The flat pan below has a propane burner installed for a fire pit. These are made in any size, shape or burn pattern. The one shown below is an electronic ignition control and these can be adapted with manual ignition as well. This was build for a designer in New York and placed on a shelf of the fireplace.
fpp 1fpp 2
fpp 3fpp 4
fpp 5fpp 6
fpp 7fpp 8
The pan burner below is a stainless steel/ propane pan for outdoors and we have installed an electronic ignition under the pan. These can also be made for natural gas.
stainless steel pan 3stainless steel pan 2
stainless steel pan 1

The fireplace below is in San Diego, California and the colors used were:
Cobalt Blue Topper
Steel Blue Topper
Cranberry Pink Topping
Purple Topper
Lilac Topper
Deep Royal Topping
Clear Base
Solex and Solex Reflective
Azurlite and Azurlite Reflective
Blue Green and Blue Green Reflective
and a little bit of Ice Ice Ice on top
wow!
The end pictures show that the burner was too close the wall which was an easy fix by moving the burner forward.
diana 8diana 9
diana 10diana 7
diana 6diana 5
diana 4diana 3
diana 2diana 1
This is where is went a little bit wrong, oops. We just had them move the burner forward and now its fine and the back wall was repainted.
diana 11diana 12

The fire pit below is a failed attempt of a propane conversion without our help in the beginning. You can't just burn propane! If you try this, this is what it will look like. You need to calibrate the amount of air to propane or it will back fire, burn black or explode! We recommend a thermo coupler, air mixer/ venturi along with several other important factors. We won't tell you who tried this but we will tell you we did fix the issue and now the customer is very happy. We did use Azurlite with Azurlite Reflective.

stan 1stan 2

stan 3stan 4

stan 5stan 6

stan 7stan 8

stan 9stan 11

stan 12stan 13



The fireplace below is a propane pan burner with a lava rock fill. You don't want to crush your own lava rock because of the time. You can use larger lava around the edges of the pan but you will want to use crushed lava in the pan up to the surface of the burners. The glass use in this fireplace was a Ford Blue base with Ford Blue Reflective on top. Topped with Clear Pyrite and Amber accents. The install went very well except for the rock crushing episode.
jm 1jm 2
jm 3jm 4
jm 5jm 6
jm 7
This new product will allow you to convert any table into a fire table. We can build these with a natural gas burner or even a propane burner. We can add fibre optics, water, fire, Fire Stones, Fire Balls, Fire Shapes, lava, sand, glass or anything else you can dream of. These are the first pictures of these bowl which come in dozens of sizes. The glass that was used in this bowl was Dark Red Orange Topper and Yellow Amber Topper. This bowl was set up with one of our 12" FPPK propane burners.
graham 1
graham 2
graham 3
graham 4
graham 5
We will be posting our bowl sizes in standard and as for custom we can make anything. We will also be posting dozens of pictures of the other projects as we have time, like we didn't post enough already?
The fire pit below has a "FPPK" propane burner installed and the burners were exchanged out for stainless steel. If you were to leave the steel burners in you will eventually have rust pouring out of your fire pit onto the patio which will not look very attractive! The glass used was 1/2" Gray and Ford Blue. The controls were inside the bottom housing, nice fire pit but almost a big oops.

prud 1

nice design.

prud 2

below you can see where the controls were to be mounted

prud 3

prud 4

above you can see the steel ready to rust and make a mess. Remember you get what you pay for.

prud 5



The burner below has a 300,000 BTU controller, 36" triple ring mounted on a 48" aluminum base plate for a fire pit in San Diego. These can be adapted for natural gas or propane with up to a 96" lead pilot light and igniter.
cesar 1
cesar 2
cesar 3
cesar 4
cesar 5







The propane burner below was made to inset flush to the floor with a remote control underneath the pan. The pan sat 5" below the surface so the glass would appear to be just above the surface. The outer ring was bolted down to keep the glass from falling underneath the burner in the event you ever had to service the burner or remote control. The tower you see is actually for the air mixer to draft fresh air to the propane before it burns.
ventless 1
ventless 2
ventless 3
As you can see we drilled it to look like a ribbon burner. This is what was ordered by the customer.
ventless 5
ventless 6
ventless 7
ventless 8





The fireplace below is in Mexico where we seem to be sending more and more propane burners and glass for the new homes being built there. The fireplace below has a Black base glass with Ice Ice Ice on top of one of our propane pan burners. Which later a remote control was added by the custom that we sent to them.
patsy 1
patsy 2
patsy 3
The fireplace below was installed by the customer (Kim Clark) with a remote control, propane burner manufactured by us and topped with Starfire. The fireplace was transformed form an ordinary to work of art, nice job!
kim 2
kim 3
kim 5
kim 6
kim 7
kim 8
The picture below has the burner being tested
kim 9
This is the remote control on the lower right with the pilot light assembly
kim 1
We now have fire!
kim 10
kim 11
kim 12
kim 13







24" 1/2 round triple stainless steel pipe 304 stainless steel pipe
The burner below is a propane manual valve with a pilot light. this burner is mounted on a 60" x 30" 1/2 round stainless steel plate which is not included as standard but an option.
The burner itself is a #304 stainless steel 1/2" pipe triple ring burner and can be used for propane or natural gas.
half round burner 4
half round burner 3
half round burner 2
half round burner 1

The fireplace below in in Lakeland, Florida and was installed by John Addison for his customer. The fireplace has one of our propane pan burners with a remote control. We built a brushed aluminum surround with out the inner glass per the customer request. The glass that was used was a Gray Base glass with Black and Copper Ruby Red on top.

john 1

As you can see the fireplace was not much to look at until we added our touch.

john 2

john 3

john 4

john 5

You be the judge, We think it turned out wonderful!

john 6





The fireplace below belongs to Ross Barnett in Florida. This was a ventless propane installation. Ross built a front wave design and we built a special wedge pan with the controls underneath. This is a remote control ventless burner. Great job Ross! The glass that was uses was:
Black and Black Reflective
Gray and Gray Reflective
Aquamarine Topper
Copper Blue Topper
Light Blue Tubes
Cobalt Blue Topper
Pale Cobalt Blue Topper
and here are the before and after pictures.
ross 12
ross 11
Above is before the wave
and below is the wave before out ventless burner was installed.
ross 10
ross 9
ross 5
ross 8
ross 7
ross 6
ross 3
ross 2
What makes us different from anyone else is that we allow you to exercise your imagination. If you see it, dream it, draw it, imagine it we can build it for you. Ross saw what we did for other customers and he came up with this very cool design for us to build for his family room, thanks Ross!
ross 1





The fireplace below is a propane fireplace with a propane burner and remote control. We used a clear base with Starfire on top. Then we added:

Medium Amber Topping,

Yellow Amber Topper,

Steel Blue Topper,

Dark Red Orange Topper over the base glass. The controls were covered after the install was finished. If you look closely you can see the pilot light assembly.

w 3

w 1

w 2

w 4

w 5



The round pan below is a propane pan with electronic ignition. This is a 36" aluminum pan with a 2" lip all around

round aluminum pan 1

round aluminum pan 2

round aluminum pan 4

The two pans below are stainless steel and are propane fueled with 415,000 BTU electronic ignitions each.

twin propane fire pans 1twin propane fire pans 2

twin propane fire pans 3

The pictures below will show you how to install a propane burner and valve in your fire pit without drilling a hole in the side of your fire pit with our FPPK (fire pit propane kit). This was install in Calabasas California with Bronze and Bronze Reflective on top. The fire pit has 10" solid sides which made this a good candidate for the FPPK to be installed on the inside wall. This is a propane fire pit and we do calibrate every valve to every ring we install to eliminate back flow and any problems or issues that may happen. We also install the proper air mixer to insure a clean burn as we eliminate the soot know to be produced by propane. If you have a propane fire pit you know what I am talking about.

fppk 1

fppk 2

fppk 3

fppk 4

fppk 5

fppk 6

fppk 7

fppk 8





The fire pit below is in the Palace of Qatar and this was commissioned for the King of Qatar. The fire pit is a propane/ butane fueled fire pit and it was installed by Gasco of Qatar. They didn't understand the glass so they opted to use lava rock. Now they (the King) have ordered the glass and if we can get the pictures we will post them.
qater 2
We did propane for the King and there are no issues! Awesome marble!
qater 3
qater 4











The fire pit below belongs to Mike DeVito in Northern California. When I saw his idea I was excited to help him create something new and wonderful. He took a very old mining cart in his front yard and we helped him convert it to a propane burning fire pit! Turned out pretty cool! Next he is getting a fire pit cover made to cover it from debris and who else knows what.
We use a FPPK (fire pit propane kit) with valves, thermo coupler, pilot light and air mixer. The glass that was use is:
Starfire base glass over a bed of crushed lava rock,
Yellow Amber Topper
Steel Blue Topper
Turquoise Blue Topper
Green Tubes
Copper Ruby Red Topper
Ice Ice Ice
and of course our Diamonds in Clear, Pink, Amber and Blue.
I think this is one really nice idea!
It is all supplied by this 20 lb propane tank
mike 2
Here is the mining cart with the base plate installed with the burners
mike 3
Here you see the controls, air mixer and thermo coupler and pilot light lines under the base plate
mike 4
You can use a larger (3/4", 1" lava) as a base under our 1/4" crushed lava as this will save you a few dollars.
mike 5
Now we pour on the crushed lava to keep the glass from sinking into the larger lava.
mike 6
Add some Starfire
mike 7
Splash a few colors
mike 8
Have your spouse light it in case something should go wrong! (Just Kidding)
mike 9
mike 10
Again here are the first pictures we saw of the mining cart. Great Idea!
Mike, you did a great job!
mike 23
mike 24
mike 25


The fireplace below is a propane fireplace with a Black Base and Clear Diamonds on top. We built a pan to hold the glass with out the legs and covered/ protected the burner controls inside of the pan. The controls are on the right side and they are shielded and buried under the glass. The customer was going to finish the front of the steel pan after he installed it.

norm 1


 Our products do not require any certification from the AGA, CSA or UL as it is considered a stand-alone product by these agencies. We are told that we would need a certification if sand and or lava rock would need certification. The agencies are franchise operations and they are privately owned and they are not a government agency. These agencies are hired for mass production testing and AGA, CSA and or UL do not certify custom one of a kind projects. Custom burners need no certification as this only applies to production equipment. Just so you can understand that a certification costs about $15,000.00 and certification was developed for production/ mass production to assure quality. Any parts that would normally need AGA or UL do in fact have these approvals. Parts with function need and should have some sort of approval. The pan burners we sell that do have UL, CSA and or any other listings are produced by other companies. The custom pan burners that we produce are just that, custom. Therefore do not require UL, CSA and or any other agency listings as these are custom. The parts that we use to build these pans are UL, CSA listed as they should be. We would never use any “Third World Country”  or any unlisted, untested parts to build any products and or parts to endanger any product performance what so ever.




The fire pit below was built by Charlie Helms in North Carolina using our FPPK (fire pit propane kit) burner. This is a propane fire pit with a lava filler. Charlie is now ready to order the glass. Check it out, great job Charlie!
charlie 1
charlie 2
charlie 15
charlie 8
charlie 9
charlie 10
charlie 11
charlie 12
The fire pit is covered to protect it from whatever may fall. Great job!
charlie 6
The fire pit below was build by Mike Phillips ( a customer). First he ran a propane line to the fire pit area and then blocked his fire pit into shape. We use a FPPK (fire pit propane kit) in an aluminum pan 24" x 24" with a double 18" double stainless steel ring.The glass that was used was a Gray base and Gray Reflective on top to add sparkle.
mike phillips 1
Below you can see the placement of the thermo coupler and safety pilot light used for propane.
mike phillips 2
Below on the right side the controls were installed in the bricks.
mike phillips 3
mike phillips 4
The fireplace below was installed with a dual battery operated 100,000 BTU propane electronic ignition system. Each capable of 100,000 BTU's of fire. The first pictures show what we had to work with and how it progressed.
The glass that was used was Starfire, Gold and Ice Ice Ice.
ted 3
If this was in your house you would say NASTY!
ted 4
ted 5
Burning wood and logs is just nasty and dirty! True story!
ted 6
ted 7
Above you can see the soot that come out of the fireplace and and leaves your house smelling so carbon monoxide fresh! YUCK!
ted 8
Add a bit of lime stone.
ted 9
A few pieces of copper.
ted 10
Below you can see the sand bed and the ignition box we built.
ted 11
Below are the two vent we installed for the air mixers inside of the ignition systems.
ted 12
ted 13
ted 14
ted 1
and here we are finished. Now isn't that much better litter feller?
Modern times call for modern measures! I guess that's why we are Moderustic!
ted 2


The fire pit below is in San Francisco California. They use  one of out FPPK units.

Here you can see the simple construction.

moxie fire pit 1

A local artist made the glass inlay top. Very cool!

moxie fire pit 2

moxie fire pit 3

moxie fire pit 4

We supplied the FPPK and the Clear glass

moxie fire pit 5























The fire table below was built by Christina "Stina" in the San Francisco area. With a little ambition, imagination and our help, she now has one very nice fire table.

STINA 1

Here is where it started. She made  a template of the pan and where the mounting tabs would be located. Then we built the aluminum pan and propane burner for Stina to install.

STINA 2

Below is how the teak table started. We just brought it into the future.

STINA 8

STINA 7

Below the pan was installed with Galaxy Green base glass.

STINA 3

STINA 9

Below you can see the top installed and what a difference.

STINA 13

Below is her wonderfully finished project, Great job Stina!

STINA 14









The fire pit below was built by Scott Spector in Florida. He started with an FPPK 30 which includes a 30" base plate and a double 24" stainless steel ring. Here we go from the beginning:

SCOTT SPECTOR 3

The propane line was run/ installed under the pavers.

SCOTT SPECTOR 4

SCOTT SPECTOR 8

SCOTT SPECTOR 2

SCOTT SPECTOR 7

SCOTT SPECTOR 10

SCOTT SPECTOR 9

SCOTT SPECTOR 12

SCOTT SPECTOR 15

The colors that were used are

1/2" Clear base,

Black Magic in the center,

Clear Diamonds,

Cobalt Blue Topper,

Clear Topper,

Cobalt Blue Light Topper

and our FPPK 30". That is our 30" propane burner. You can see the actual burner above burning before shipment and installation.

SCOTT SPECTOR 6

We don't have any pictures of the fire pit burning at Scott's but he did tel us that when he fired it up again he would try to send us a few pictures. Thanks Scott.

SCOTT SPECTOR 14



The burner below is one of our FPPK's (fire pit propane kit). With this FPPK we set it up for Black Magic! This was table tested for the pictures. Hopefully the customer will send us pictures after and during installation. We first sent these pictures for the customers approval. Here you go! The pan below belongs to Scott Spector and he finally installed the fire pit in his back yard, WOW, one really nice backyard!
black magic 1
This is one of our propane pan burner with slight modifications.
black magic 2
black magic 3
black magic 4
As you can see around the lower edges it was leaking and yes we did fix this.
black magic 5
black magic 6


he next Wine Barrel Fire Pit was built be Shaun Ibe.

We supplied all of the parts, knowledge base and Shaun built one really nice Wine Barrel Fire pit! We will explain as we move forward

Shaun Ibe Wine Barrel Fire Pit
Shaun used up all of his old corks to line the top with and then he had a piece of glass made to cover the corks. Be sure you have the top made with tempered glass! Teh glasss that was used was

1/4" Clear Base Glass

Platinum Base Glass

Gold Ruby Topper

Shaun Ibe Wine Barrel Fire Pit

See the Wine Barrel Parts Page!

Shaun Ibe Wine Barrel Fire Pit
We supply you with creativity, parts, support, imagination and give you license to be creative on your own, after all, that's what we do and who we are!



CLICK HERE" or on the pictures below to see what John Lehman did and how he built this table!
John Lehman Fire Table
_________________________________________________________________________________

             Here is the answer some of you think you know. (You don't!) These are Air Mixers,  Venturis Carburetors.

These like a carburetor on any engine act as the air fuel mixture governor. Have you ever been behind an older car that smells funny? Wrong air mixture! Bad mechanic! The air mixers have to be calibrated not only to the valving but the burner as well. We have been building propane burners for several years now and we have never had an issue with any configuration that we have built, ever. It's the same as porting an engine for proper air flow. If you just STICK one of these on your burner then you may be giving us a call soon enough.

Here are a few pictures of the 1/2" and 3/4" air mixers, (40,000 to 400,000 btu mixers).

Air Mixers L and S 1

Air Mixers L and S 2

Air Mixers L and S 3

Air Mixers L and S 4

If you attach it and create back pressure, you will have a fire or an explosion, guaranteed. We are not trying to frighten you but to make you aware. We believe in safety first and we don't build systems without thermo couples and or pilot light systems, ever!

Air Mixers Large 1

Air Mixers Large 2

As you may have of seen on our "How Not To Do It Page" they still screw up no matter how hard they try. We are here only to help!

Air Mixers Large 3

Visit Our Original
E-STORE
Or Visit Our NEW
E-STORE!


We Make Fire Cool!

Moderustic® is proud to have been issued 5 U.S. Patent Numbers
and 1 Patent pending status!  5th one just awarded notice of allowance 10/23/2021
Covering our method of creating tumbled tempered glass for use in fireplaces and fire pits.
Patent Applications Published 2005, 2006, 2014 and 2017 (twice). Worlds most infringed PATENT in WORLD HISTORY!
A must see and read!



Our Glass is SAFE and See Why!

Safe Glass
 We  Appreciate Your Comments & Feed Back. Please
Send Your E-mails or Click HERE to Submit a Survey!

Note* When calling for any technical support we ABSOLUTELY
require Digital photos from a camera not your phone.

(909) 989-6129  Fax: 909 944 3811
or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com



Need to know how much you need
 "HOW MUCH DO I NEED PAGE"
Our Crushed Lava can be purchased online
"JUST CLICK HERE"
Do you need a Burner?
 "JUST CLICK HERE"
Our Fireplace Paint can be purchased online
 "JUST CLICK HERE"

Stop by and visit our Showroom in Rancho Cucamonga:(just north of the Ontario Airport
Moderustic Inc.
9467 Ninth Street Suite #D
Rancho Cucamonga, California 91730
Hours: Monday-Friday 9:00 to 6:00 Closed Saturday and Sunday, Saturday by appointment only.

If you're coming late, please call us and we will stay late.  We are 2 miles North of the Ontario Airport
_________________________________________________________________
Moderustic Fabrication University
MODERUSTIC FABRICATION UNIVERSITY
Investment, Employee or Career Opportunities.
_________________________________________________________________


Copyright 2003 -2020 www.Moderustic.com All Rights Reserved.
Copyright 2003 - 2020 www.AquaticGlassel.com All Rights Reserved.

We Make Fire Cool!

Moderustic® is proud to have been issued 5 U.S. Patent Numbers
and 1 Patent pending status!  5th one just awarded notice of allowance 10/23/2021
Covering our method of creating tumbled tempered glass for use in fireplaces and fire pits.
Patent Applications Published 2005, 2006, 2014 and 2017 (twice). Worlds most infringed PATENT in WORLD HISTORY!

Simple Patents (click here)




RETURN POLICY!

  • Shipping has become an issue so all orders will and must be signed for. No package will be left at your door unless you sign for it. This is called an indirect or direct signature request. It is also refereed to as a Signature service. If a package or packages are left at your door per your request, you will be the responsible party.
  • All returns must be made within 30 days of purchase with exceptions only by management
  • Returned products must be unused and/or unmixed
  • Returned products must be packaged well to avoid damage in transit, or you will be responsible for the damage
  • Returned products that are damaged in transit will not be able to be refunded
  • Refunds will be made towards product cost only
  • Refunds will not be given for non-product labor costs (consulting fees, installation fees, labor, shipping etc.)
  • Restock fees may apply depending on which items are being returned. (30% to 70%) Glass/ burning products 30%, Burners 50%, Custom Burners 70%, Metal Pans or any Custom Metal Work, Electronics are not returnable ever!
  • All returns must have a return authorization (we are not responsible for products being shipped to incorrect addresses due to non-compliance of this policy)
  • No returns or exchanges will be accepted for any custom metal products or electronics what so ever!
  • No returns will be accepted for ICS/ Fire Falls, or any other standard or custom fire pits.
  • No returns on products that contain electronics (if they were used or installed)
  • We are not responsible for local codes and or if any of our products are or are not approved. Please check with your local building department or governing agencies for proper approvals before purchasing. Custom built or designed items are not returnable for any reason. It is your responsibility to make sure our products do not violate your local building codes.  We cannot accept returns should you encounter these issues with your local building authorities.
  • Any Designs, Drawings, PDF Files, Ideas, Pictures, Attachments, Renderings, Facsimiles, Faxes, Blue Prints, Copies, Documents and even copy written materials once sent to Moderustic Inc, Ed Jaunzemis, Aquatic Glassel or any employee of Moderustic Inc becomes property of said company to use, distribute, copy, reproduce, manipulate, recreate, modify, advertise, promote, lay claim to and or use in our discretion as we need.  If you do not agree with these terms then please do not send us anything. Our intentions are to create for you the "Customer" and it is our vast collection of material that will spawn an idea for you to have us create something for you. If we should create something/ anything for you that is one of a kind, you do not own any rights to this or there idea or ideas, product or concept in any way shape or form.

To read all company policies, terms and conditions, CLICK HERE!



Propane Prop 65 Warnings



All of the pictures and content are copyright protected on this website: U.S. Copyright Registration No is: VA 1-650-624
Entitled: "Moderustic 1107"
Effective registration date is February 1, 2008.
Has anyone ever told you "Nice Logs" ? Nooo, I don't think so.
CSLB# C-17 693887

US patent numbers  #US9700987B1 and US9808905B2



We Make Fire Cool!

Moderustic® is proud to have been issued 5 U.S. Patent Numbers
and 1 Patent pending status!  5th one just awarded notice of allowance 10/23/2021
Covering our method of creating tumbled tempered glass for use in fireplaces and fire pits.
Patent Applications Published 2005, 2006, 2014 and 2017 (twice). Worlds most infringed PATENT in WORLD HISTORY!

Violators will be prosecuted.

Note* When calling for any technical support we ABSOLUTELY (maybe)
require Digital photos from a camera not your phone (if that is all you have, then that's fine).

(909) 989-6129  Fax: 909 944 3811
or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com

_________________________________________________

Click HERE or on the Picture below to see our MOVIES!
Let's Go To The Movies
Click HERE or on the Picture above to see our MOVIES!

_________________________________________________________________

Check out the Car Garden, A fun car page by Ed

Car Garden

We now have "several" Active Patents and a Patent Pending Status. "We were the first to file" (yes we were), is why we have The Patents for FireGlass.

  • Prop 65 Warning:
  1. WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the state of California to cause cancer, and Carbon Monoxide, Lead and Lead Compounds which are known to the state of Califronia to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
  2. ADVERTENCIA: Este producto puede exponerlo a productos químicos como el plomo y los compuestos de plomo, sabidos por el estado de California como causa de cáncer, y el monóxido de carbono, el plomo y los compuestos de plomo, sabidos por el estado de Califronia como causa de defectos de nacimiento u otros daños reproductivos. Para obtener más información www.P65Warnings.ca.gov.

For any competitors out there, Second place is first loser. Sorry.

See our page for Investors!

Safe FIREGlass for Fire Pits and Fireplaces

A must see and read!

Patent Piracy is not a victimless crime

US active patent numbers US9700987B1 and US9808905B2

5 Patents and patent pending

Visit www.USPTO.GOV for details on Patent infringement

or E-mail us at
Ed@Moderustic.com |  Jaunzemis@msn.com
